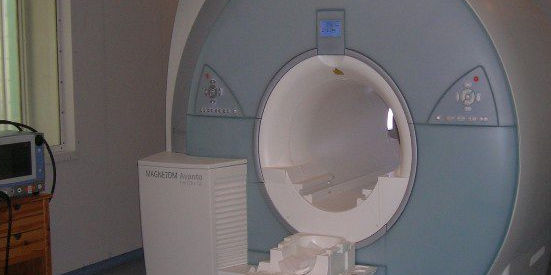

Siemens AVANTO 1.5T

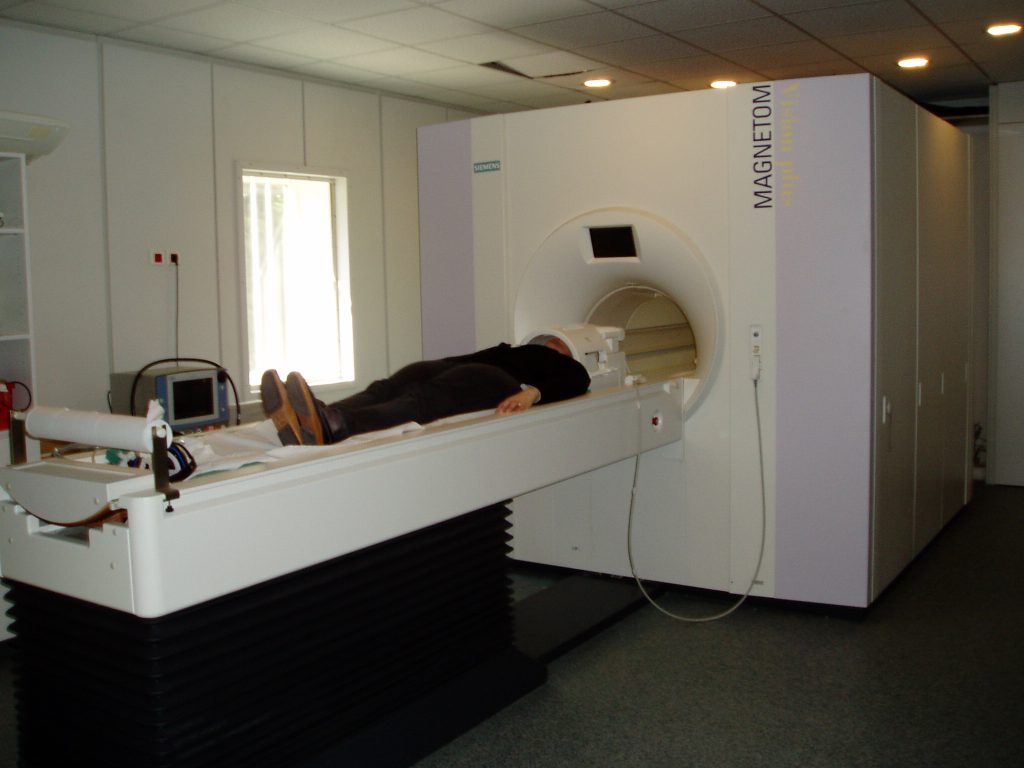

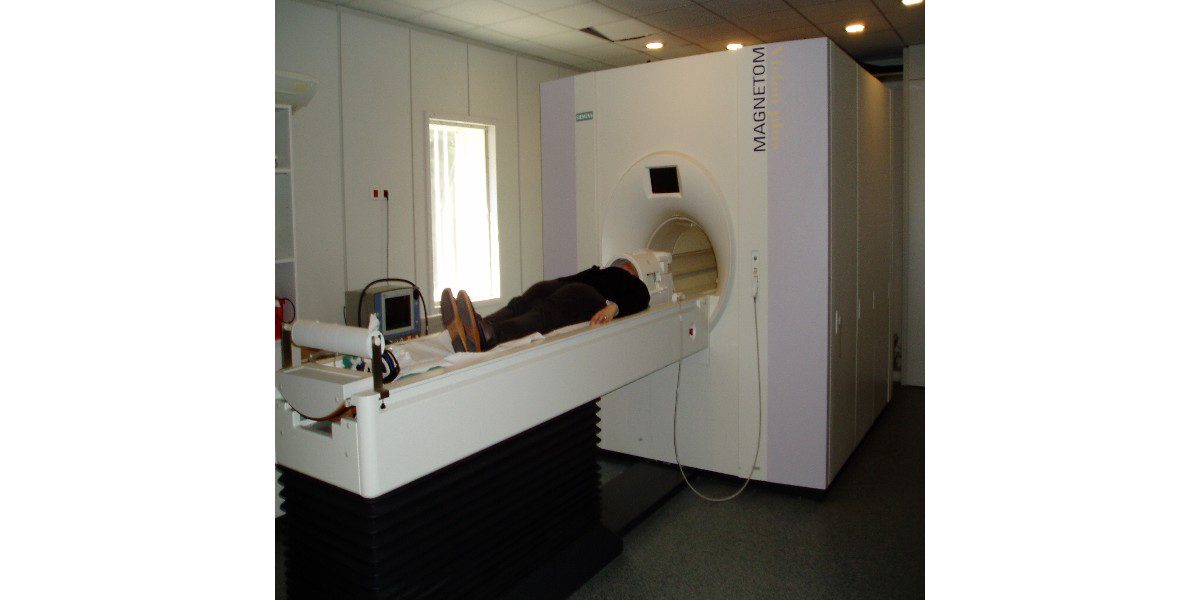

1.5T Vision Plus Siemens1998-2008
CLASS TIM (76 x 32)
  • 1.5T Vision Plus Siemens1998-2008
1.5T whole body magnet

Helium Zero boil off
60 cm diameter 1.5 m length
5.9 tons
Actively shielded
5 Gauss fringe field (axial x radial) 4.0 m x 2.5 m

Shimming

2nd & 3rd order shimming

Gradients

40 mT/m ( 200 mT/m/ms) for x & y axis each
45 mT/m ( 200 mT/m/ms) for z axis

RF

Proton (Tx 15kW nominal)
SAR supervision
2nd RF system for multinuclear study (1Tx 8kW)

1.5T RF Coils

Rx Neuro

1H Head matrix (32 channels)
1H Head matrix (12 channels)
1H Neck matrix (4 channels)
1H spine array matrix (24 channels)


MSK

1H peripheral angio matrix (36 channels)
Two 1H 6-channels flex coils

Cardio MSK

Two 1H body array (16 channels)

Multi-applications

Two 4 channel F flex (small and large)
Loop 1H
Loop 1H/31P
